教程 2：使用者在 Streamlit 聊天机器人中与 CKE 进行交互¶
简介¶
在本教程中，您将设置自定义检索增强生成 (RAG) 管道，将 Cortex Knowledge Extension 中的知识整合到聊天机器人中。

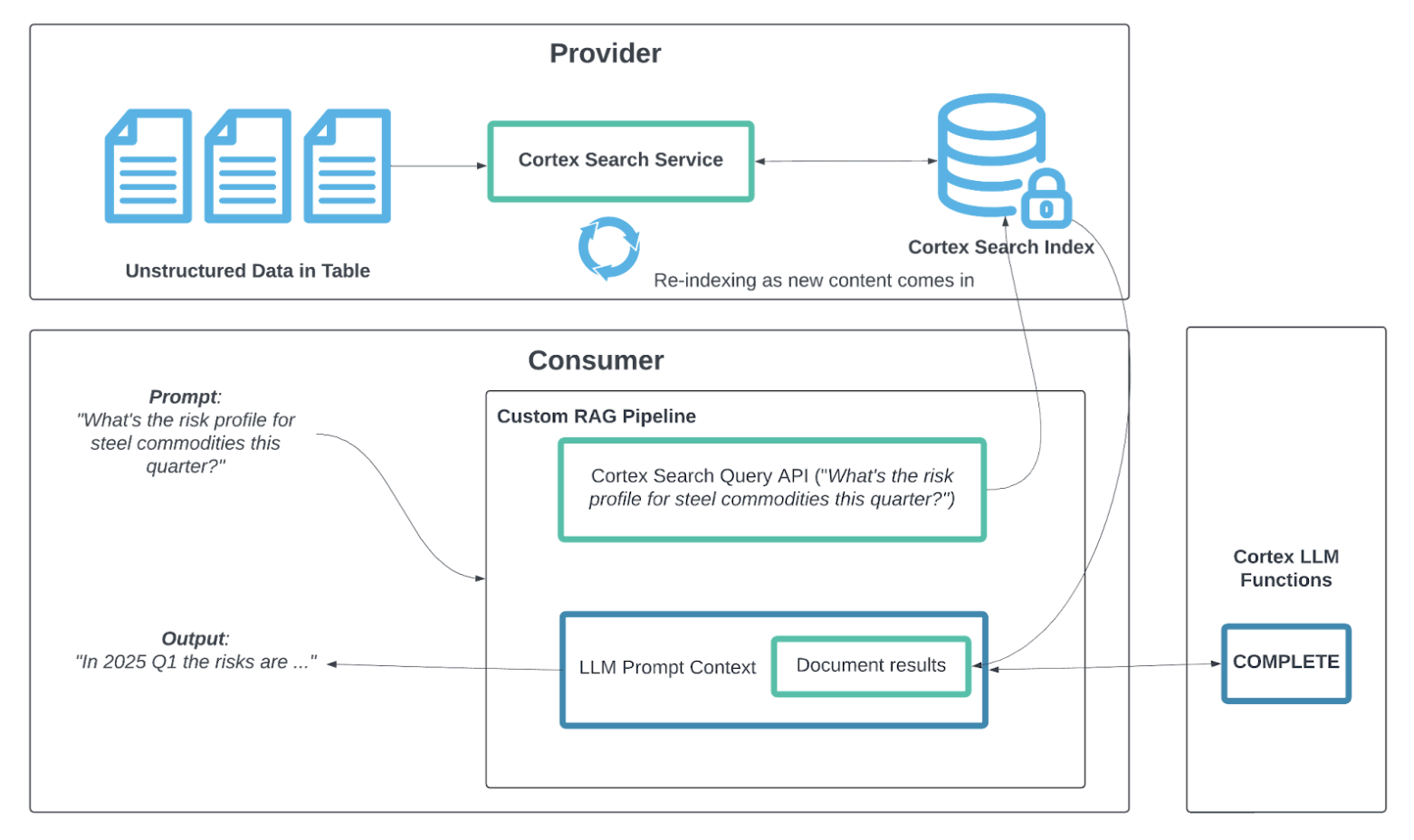

以下是它的工作原理：
Streamlit 应用程序接受用户的提示。
使用配置的 Cortex Knowledge Extension/Cortex Search Service向 Cortex Search Query API 提供提示。
Streamlit 应用程序获取检索到的文档，将其放入带有自定义提示的上下文窗口，然后将其发送到具有指定 LLM 的 Cortex LLM Complete 函数。
备注
本教程假设您已有一个可用的 CKE。前往 Snowflake Marketplace 并访问一个，或者使用 教程 1 创建一个。
第 1 步：设置环境¶
以下示例设置了一个环境并创建了一个 Streamlit 应用程序，您可以在 Snowflake 中运行该应用程序来测试 Cortex Knowledge Extension。这假设使用者有权访问提供商共享的 Cortex Knowledge Extension。
登录 Snowsight。
在左侧导航栏中，选择 Projects » Streamlit。
选择 + Streamlit App。
此时 Create Streamlit App 窗口将打开。
输入应用程序的名称。
在 App location 下拉列表中，选择应用程序的数据库和架构。
在 Warehouse 下拉列表中，选择要在其中运行应用程序和执行查询的仓库。
选择 Create。
Snowflake 中的 Streamlit 编辑器将在查看器模式下打开示例 Streamlit 应用程序。查看器模式允许您查看 Streamlit 应用程序将如何向用户显示。

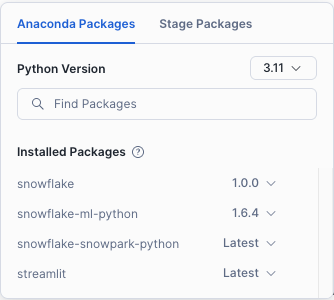

验证是否安装了正确的软件包和版本，如下图所示。
第 2 步：为 CKE 聊天测试人员创建 Streamlit 应用程序¶
以下代码是一个简单的 Streamlit 应用程序，允许您测试 CKE。该应用程序使用 Snowflake ML Python 包来调用 Cortex Knowledge Extension 和 Snowflake LLM Complete 函数。该应用程序允许您选择 Cortex Knowledge Extension、输入问题并接收来自的 LLM 回复。该应用程序还提供调试和使用聊天记录的选项。
在左侧导航栏中，选择 Projects » Streamlit。
选择您在上一步中创建的 Streamlit 应用程序。
在 Snowflake 中的 Streamlit 编辑器中，选择 Edit » Edit code。
Snowflake 中的 Streamlit 编辑器将在编辑模式下打开。
在左侧导航栏中，选择 streamlit_app.py 以打开代码编辑器。
在代码编辑器中，删除现有代码。
复制下面的代码并将其粘贴到代码编辑器中，然后选择 Save » Save and run。
Snowflake 中的 Streamlit 编辑器运行该应用程序并在查看器模式下将其打开。
import streamlit as st
from snowflake.core import Root
from snowflake.cortex import Complete
from snowflake.snowpark.context import get_active_session
MODELS = [
"llama3.1-8b",
"llama3.1-70b",
"llama3.1-405b"
]
def init_messages():
"""Initialize session state messages if not present or if we need to clear."""
if st.session_state.get("clear_conversation") or "messages" not in st.session_state:
st.session_state.messages = []
st.session_state.clear_conversation = False
def init_service_metadata():
"""Load or refresh cortex search services from Snowflake."""
services = session.sql("SHOW CORTEX SEARCH SERVICES IN ACCOUNT;").collect()
service_metadata = []
if services:
for s in services:
svc_name = s["name"]
svc_schema = s["schema_name"]
svc_db = s["database_name"]
svc_search_col = session.sql(
f"DESC CORTEX SEARCH SERVICE {svc_db}.{svc_schema}.{svc_name};"
).collect()[0]["search_column"]
service_metadata.append(
{
"name": svc_name,
"search_column": svc_search_col,
"db": svc_db,
"schema": svc_schema,
}
)
st.session_state.service_metadata = service_metadata
# Initialize selected_cortex_search_service if it doesn't exist
if "selected_cortex_search_service" not in st.session_state and service_metadata:
st.session_state.selected_cortex_search_service = service_metadata[0]["name"]
selected_entry = st.session_state.get("selected_cortex_search_service")
if selected_entry:
# Find matching service metadata
selected_service_metadata = next(
(svc for svc in st.session_state.service_metadata if svc["name"] == selected_entry),
None
)
if selected_service_metadata:
# Store them in session_state
st.session_state.selected_schema = selected_service_metadata["schema"]
st.session_state.selected_db = selected_service_metadata["db"]
elif st.session_state.get("debug", False):
st.write("No matching service found for:", selected_entry)
def init_config_options():
if "service_metadata" not in st.session_state or not st.session_state.service_metadata:
st.sidebar.warning("No Cortex Knowledge Extensions available")
return
st.sidebar.selectbox(
"Select Cortex Knowledge Extension",
[s["name"] for s in st.session_state.service_metadata],
key="selected_cortex_search_service",
)
if st.sidebar.button("Clear conversation"):
st.session_state.clear_conversation = True
# If st.sidebar.toggle isn't available, use st.sidebar.checkbox:
st.sidebar.checkbox("Debug", key="debug", value=False)
st.sidebar.checkbox("Use chat history", key="use_chat_history", value=True)
with st.sidebar.expander("Advanced options"):
st.selectbox("Select model:", MODELS, key="model_name")
st.number_input(
"Select number of context chunks",
value=5,
key="num_retrieved_chunks",
min_value=1,
max_value=10,
)
st.number_input(
"Select number of messages to use in chat history",
value=5,
key="num_chat_messages",
min_value=1,
max_value=10,
)
st.sidebar.expander("Session State").write(st.session_state)
def get_chat_history():
"""Get the last N messages from session state."""
start_index = max(
0, len(st.session_state.messages) - st.session_state.num_chat_messages
)
return st.session_state.messages[start_index : len(st.session_state.messages) - 1]
def complete(model, prompt):
"""Use the chosen Snowflake cortex model to complete a prompt."""
return Complete(model=model, prompt=prompt).replace("$", "\\$")
def make_chat_history_summary(chat_history, question):
"""
Summarize the chat history plus the question using your LLM,
to refine the final search query.
"""
prompt = f"""
[INST]
Based on the chat history below and the question, generate a query that extend the question
with the chat history provided. The query should be in natural language.
Answer with only the query. Do not add any explanation.
<chat_history>
{chat_history}
</chat_history>
<question>
{question}
</question>
[/INST]
"""
summary = complete(st.session_state.model_name, prompt)
if st.session_state.debug:
st.sidebar.text_area("Chat history summary", summary.replace("$", "\\$"), height=150)
return summary
def query_cortex_search_service(query, columns=[], filter={}):
"""
Query the selected cortex search service with the given query and retrieve context documents.
"""
# Safely retrieve from session_state
db = st.session_state.get("selected_db")
schema = st.session_state.get("selected_schema")
if st.session_state.get("debug", False):
st.sidebar.write("Query:", query)
st.sidebar.write("DB:", db)
st.sidebar.write("Schema:", schema)
st.sidebar.write("Service:", st.session_state.selected_cortex_search_service)
cortex_search_service = (
root.databases[db]
.schemas[schema]
.cortex_search_services[st.session_state.selected_cortex_search_service]
)
context_documents = cortex_search_service.search(
query,
columns=columns,
filter=filter,
limit=st.session_state.num_retrieved_chunks
)
results = context_documents.results
if st.session_state.get("debug", False):
st.sidebar.write("Search Results:", results)
service_metadata = st.session_state.service_metadata
search_col = [
s["search_column"] for s in service_metadata
if s["name"] == st.session_state.selected_cortex_search_service
][0].lower()
# Build a context string for the prompt
context_str = ""
context_str_template = (
"Source: {source_url}\n"
"Source ID: {id}\n"
"Excerpt: {chunk}\n\n\n"
)
for i, r in enumerate(results):
context_str += context_str_template.format(
id=i+1,
chunk=r[search_col],
source_url=r["source_url"],
title=r["document_title"],
)
if st.session_state.debug:
st.sidebar.text_area("Context documents", context_str, height=500)
return context_str, results
def create_prompt(user_question):
"""
Combine user question, context from the search service, and chat history
to create a final prompt for the LLM.
"""
if st.session_state.use_chat_history:
chat_history = get_chat_history()
if chat_history != []:
question_summary = make_chat_history_summary(chat_history, user_question)
prompt_context, results = query_cortex_search_service(
question_summary, columns=["chunk", "source_url", "document_title"]
)
else:
prompt_context, results = query_cortex_search_service(
user_question, columns=["chunk", "source_url", "document_title"]
)
else:
prompt_context, results = query_cortex_search_service(
user_question, columns=["chunk", "source_url", "document_title"]
)
chat_history = ""
prompt = f"""
You are a helpful AI assistant with RAG capabilities. When a user asks you a question, you will also be given excerpts from relevant documentation to help answer the question accurately. Please use the context provided and cite your sources using the citation format provided.
Context from documentation:
{prompt_context}
User question:
{user_question}
OUTPUT:
"""
# Add prompt to debug window
if st.session_state.get("debug", False):
st.sidebar.text_area("Complete Prompt", prompt, height=300)
return prompt, results
def post_process_citations(generated_response, results):
"""
Replace {{.StartCitation}}X{{.EndCitation}} with bracketed references to actual product links.
NOTE: If the model references chunks out of range (like 4 if only 2 exist),
consider adding logic to remap or drop invalid references.
"""
used_results = set()
for i, ref in enumerate(results):
old_str = f"{{.StartCitation}}{i+1}{{.EndCitation}}"
replacement = f"[{i+1}]{ref['source_url']})"
new_resp = generated_response.replace(old_str, replacement)
if new_resp != generated_response:
used_results.add(i)
generated_response = new_resp
return generated_response, used_results
# ------------------------------------------------------------------------------
# (2) Main Application (with improved UI)
# ------------------------------------------------------------------------------
def main():
# Optional: wide layout, custom page title
st.set_page_config(
page_title="Cortex Knowledge Extension Chat Tester",
layout="wide",
)
# Optional: a bit of custom CSS for bubble spacing
custom_css = """
<style>
[data-testid="stChatMessage"] {
border-radius: 8px;
margin-bottom: 1rem;
padding: 10px;
}
</style>
"""
st.markdown(custom_css, unsafe_allow_html=True)
# Title or subheader for your app
st.subheader("Cortex Knowledge Extension Chat Tester")
# Initialize metadata and config
init_service_metadata()
init_config_options()
init_messages()
# Icons for user/assistant
icons = {"assistant": "❄️", "user": "👤"}
# Display chat messages from history on app rerun
for message in st.session_state.messages:
with st.chat_message(message["role"], avatar=icons[message["role"]]):
st.markdown(message["content"])
# If there are no services, disable chat
disable_chat = (
"service_metadata" not in st.session_state
or len(st.session_state.service_metadata) == 0
)
# Chat input
if question := st.chat_input("Ask a question...", disabled=disable_chat):
# 1. Store user message
st.session_state.messages.append({"role": "user", "content": question})
# 2. Display user bubble
with st.chat_message("user", avatar=icons["user"]):
st.markdown(question.replace("$", "\\$"))
# 3. Prepare assistant response
with st.chat_message("assistant", avatar=icons["assistant"]):
message_placeholder = st.empty()
# Clean the question
question_safe = question.replace("'", "")
# Build prompt and retrieve docs
prompt, results = create_prompt(question_safe)
with st.spinner("Thinking..."):
generated_response = complete(st.session_state.model_name, prompt)
# Post-process citations
post_processed_response, used_results = post_process_citations(generated_response, results)
# Build references table (only if there are results)
if results:
markdown_table = "\n\n###### References \n\n| Index | Title | Source |\n|------|-------|--------|\n"
for i, ref in enumerate(results):
# Include all references that were found
markdown_table += (
f"| {i+1} | {ref.get('document_title', 'N/A')} | "
f"{ref.get('source_url', 'N/A')} |\n"
)
else:
markdown_table = "\n\n*No references found*"
# Show final assistant message (with references)
message_placeholder.markdown(post_processed_response + markdown_table)
# 4. Append final assistant message to chat history
st.session_state.messages.append(
{"role": "assistant", "content": post_processed_response + markdown_table}
)
# ------------------------------------------------------------------------------
# (3) Entry Point
# ------------------------------------------------------------------------------
if __name__ == "__main__":
session = get_active_session()
root = Root(session)
main()

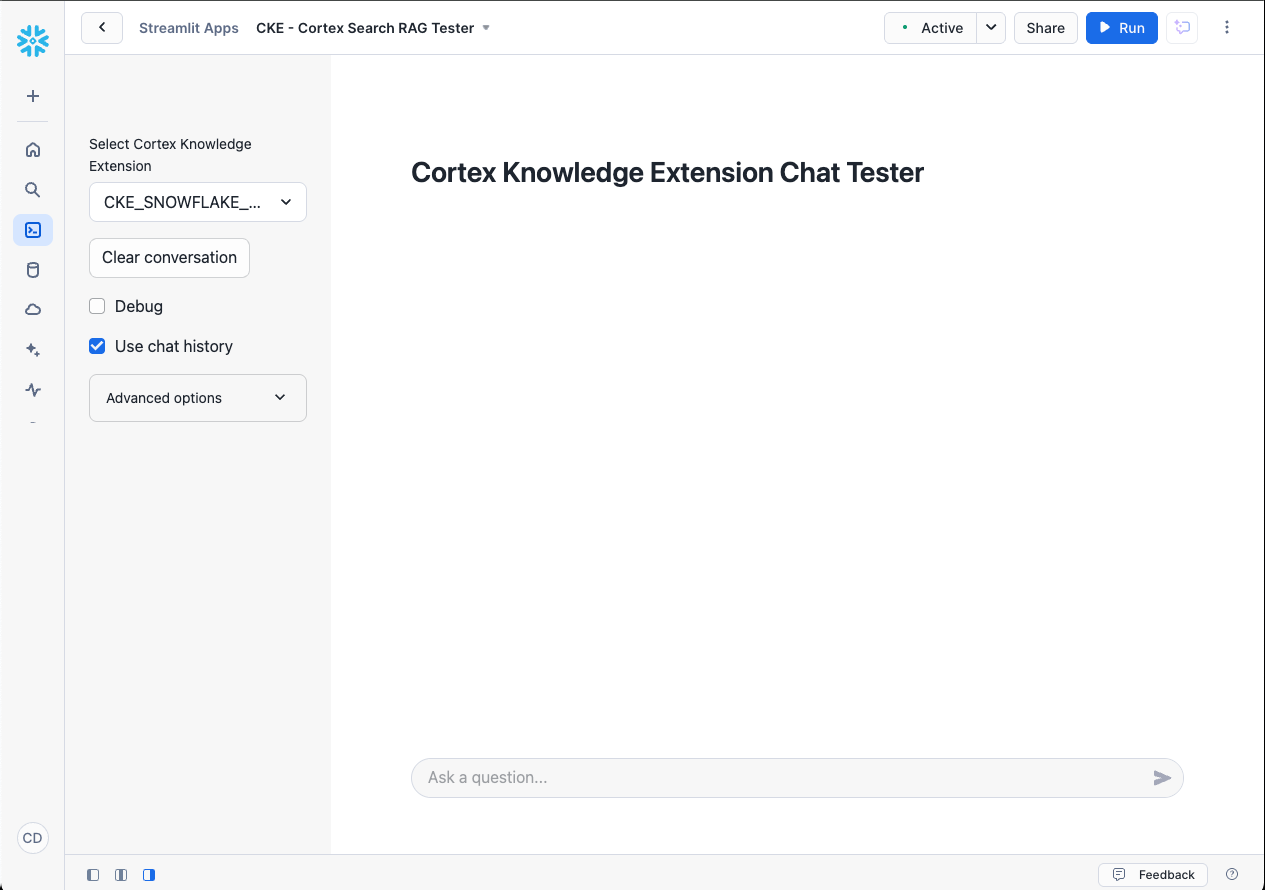

第 3 步：测试应用程序¶
点击 Run 启动 Streamlit 应用程序。
从左侧窗格中 Select Cortex Knowledge Extension 下方的下拉菜单中选择 CKE。`
在聊天文本框中提问。
