Snowpipe Streaming REST API endpoints¶

Note

We recommend that you begin with the Snowpipe Streaming SDK over the REST API to benefit from the improved performance and getting-started experience.

The Snowpipe Streaming REST API is designed for lightweight workloads and provides a flexible way to integrate with external applications without using the Snowpipe Streaming SDK.

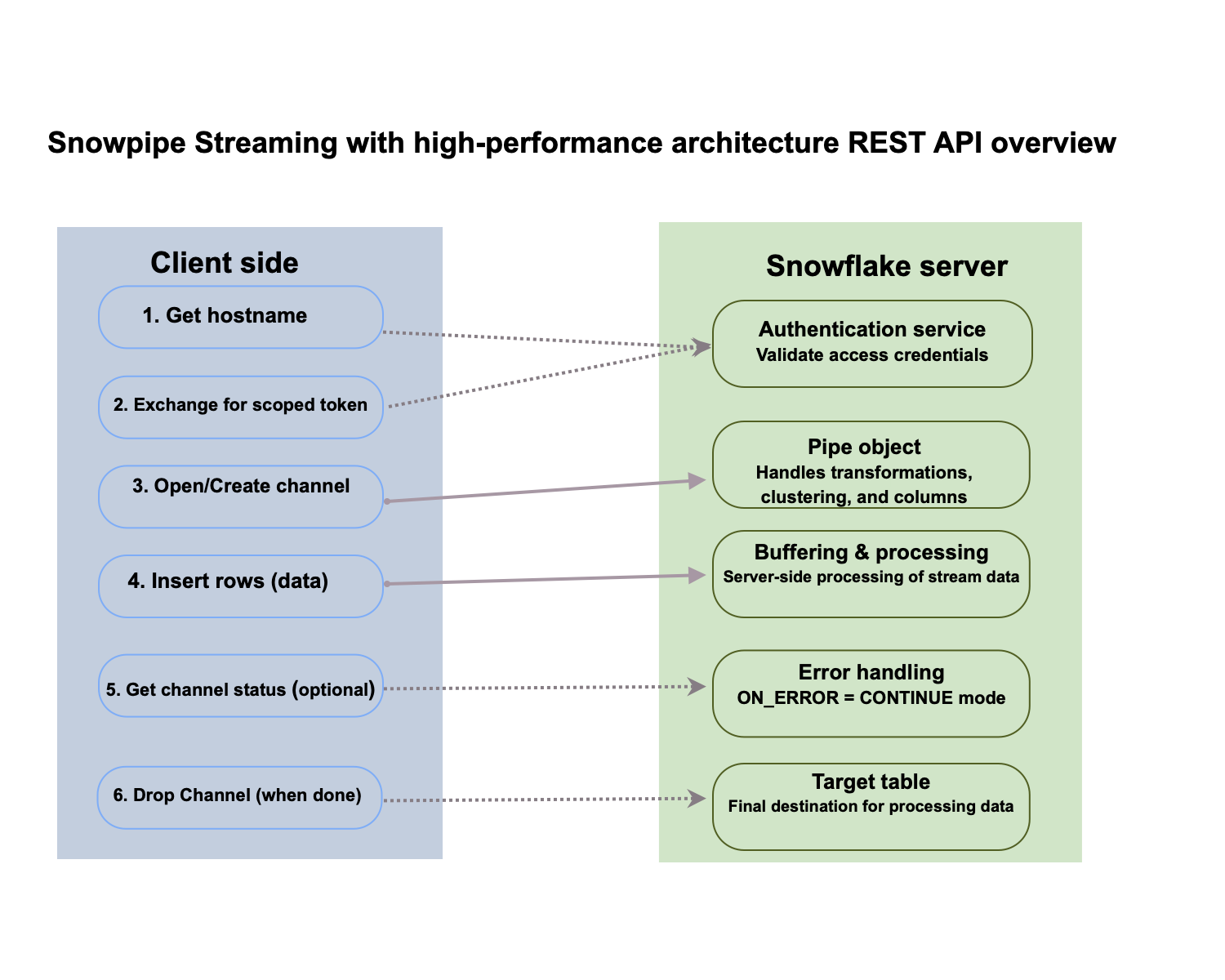

The following diagram provides a visual overview of how data flows from the client to the Snowflake server, detailing each of the key API endpoints in the process.

Request headers¶

The following request headers apply to all the endpoints for the Snowpipe Streaming REST API:

Header	Description
`Authorization`	Authentication token
`X-Snowflake-Authorization-Token-Type` (optional)	JWT/OAuth
`Content-Encoding` (optional)	Specifies the compression format of the payload. Supported: `gzip`, `zstd`.

Note

The maximum allowed size for a single request payload is 16 MB. If your data is larger, you must split it into multiple requests.

Get Hostname¶

The Get Hostname returns the hostname used to interact with the Snowpipe Streaming REST API. Each account has a unique hostname.

GET /v2/streaming/hostname

Response:

{
  "hostname": "string"
}

Description of response fields:

Field	Type	Description
Hostname	String	The hostname of the account.

Exchange Scoped Token¶

The Exchange Scoped Token returns a security token that can be used to access only the Snowpipe Streaming API-related service. This provides security protection for the customer.

POST /oauth/token

Request:

Attribute	Required	Component	Description
content_type	Yes	Header	“application/x-www-form-urlencoded”
grant_type	Yes	Payload	“urn:ietf:params:oauth:grant-type:jwt-bearer”
scope	Yes	Payload	The hostname of the account.

Response:

{
  "token": "string"
}

Description of response fields:

Field	Type	Description
Token	String	The scoped token.

Open Channel¶

The Open Channel operation creates or opens a new channel against a pipe or table. If the channel already exists, Snowflake bumps the client sequencer of the channel and returns the last committed offset token.

PUT /v2/streaming/databases/{databaseName}/schemas/{schemaName}/pipes/{pipeName}/channels/{channelName}

Request:

Attribute	Required	Component	Description
databaseName	Yes	URI	Database name, case-insensitive.
schemaName	Yes	URI	Schema name, case-insensitive.
pipeName	Yes	URI	Pipe name, case-insensitive.
channelName	Yes	URI	The name of the channel that you create or re-open, case-insensitive.
offset_token	No	Payload	String used to set an offset token when opening a channel.
fail_on_uncommitted_rows	No	Payload	Boolean. When `true`, the server rejects the request with HTTP `409 Conflict` (`ERR_CHANNEL_HAS_UNCOMMITTED_DATA`) if the channel has uncommitted in-flight data. Otherwise, in-flight data is silently discarded and can slow co-located channels on the pipe (default: `false`).
requestId	No	Query parameter	A universally unique identifier (UUID) used to track requests through the system.

Response:

{
  "next_continuation_token": "string",
  "channel_status": {
    "database_name": "string",
    "schema_name": "string",
    "pipe_name": "string",
    "channel_name": "string",
    "channel_status_code": "string",
    "last_committed_offset_token": "string",
    "created_on_ms": "long",
    "rows_inserted": "int",
    "rows_parsed": "int",
    "rows_error_count": "int",
    "last_error_offset_upper_bound": "string",
    "last_error_message": "string",
    "last_error_timestamp": "timestamp_utc",
    "snowflake_avg_processing_latency_ms": "int"
  }
}

Description of response fields:

Field	Type	Description
next_continuation_token	String	An API-managed token that must be used in the subsequent Append Rows request. The token links a series of calls, ensuring a contiguous, in-order stream of data and maintaining the session state for exactly once delivery.
channel_status	Object	A nested object with the following detailed information about the channel: database_name (String): The name of the database where the pipe is located. schema_name (String): The name of the schema where the pipe is located. pipe_name (String): The name of the specific pipe being used. channel_name (String): The name of the streaming channel. channel_status_code (String): A code that indicates the current status of the channel; for example, “ACTIVE”. last_committed_offset_token (String): The token that represents the last successfully committed offset. created_on_ms (Long): The timestamp, in milliseconds, when the channel was created. rows_inserted (Int): The total number of rows successfully inserted. rows_parsed (Int): The total number of rows parsed. rows_error_count (Int): The total number of rows that encountered an error. last_error_offset_upper_bound (String): A token that indicates the upper bound of the offset where the last error occurred. last_error_message (String): The message of the last error that occurred. last_error_timestamp (Long): The timestamp, in milliseconds, of the last error. snowflake_avg_processing_latency_ms (Int): The average processing latency of Snowflake in milliseconds.

Field

Type

Description

next_continuation_token

String

An API-managed token that must be used in the subsequent Append Rows request. The token links a series of calls, ensuring a contiguous, in-order stream of data and maintaining the session state for exactly once delivery.

channel_status

Object

A nested object with the following detailed information about the channel:

database_name (String): The name of the database where the pipe is located.
schema_name (String): The name of the schema where the pipe is located.
pipe_name (String): The name of the specific pipe being used.
channel_name (String): The name of the streaming channel.
channel_status_code (String): A code that indicates the current status of the channel; for example, “ACTIVE”.
last_committed_offset_token (String): The token that represents the last successfully committed offset.
created_on_ms (Long): The timestamp, in milliseconds, when the channel was created.
rows_inserted (Int): The total number of rows successfully inserted.
rows_parsed (Int): The total number of rows parsed.
rows_error_count (Int): The total number of rows that encountered an error.
last_error_offset_upper_bound (String): A token that indicates the upper bound of the offset where the last error occurred.
last_error_message (String): The message of the last error that occurred.
last_error_timestamp (Long): The timestamp, in milliseconds, of the last error.
snowflake_avg_processing_latency_ms (Int): The average processing latency of Snowflake in milliseconds.

Append Row(s)¶

The Append Rows operation inserts a batch of rows to the given channel.

POST /v2/streaming/data/databases/{databaseName}/schemas/{schemaName}/pipes/{pipeName}/channels/{channelName}/rows

Request:

Attribute	Required	Component	Description
databaseName	Yes	URI	Database name, case-insensitive.
schemaName	Yes	URI	Schema name, case-insensitive.
pipeName	Yes	URI	Pipe, case-insensitive.
channelName	Yes	URI	Channel name, case-insensitive.
continuationToken	Yes	Query parameter	Continuation token from Snowflake, encapsulates both client and row sequencers.
offsetToken	No	Query parameter	String used to set an offset token per batch.
rows	Yes	Payload	The actual data payload to be ingested in NDJSON format. The maximum allowed size for this attribute is 4 MB.
requestId	No	Query parameter	A UUID used to track requests through the system.

Note

The JSON text within the NDJSON payload must strictly conform to the RFC 8259 standard. Each JSON text must be followed by a newline character \n (0x0A). You can also insert a carriage return \r (0x0D) before the newline character.

Response:

{
  "next_continuation_token": "string"
}

Description of response fields:

Field	Type	Description
next_continuation_token	string	The next continuation token from Snowflake, which encapsulates both client and row sequencers. It should be used for inserting the next batch.

Drop Channel¶

The Drop Channel operation drops a channel at server side along with its metadata.

DELETE /v2/streaming/databases/{databaseName}/schemas/{schemaName}/pipes/{pipeName}/channels/{channelName}

Request:

Attribute	Required	Component	Description
databaseName	Yes	URI	Database name, case-insensitive
schemaName	Yes	URI	Schema name, case-insensitive
pipeOrTableName	Yes	URI	Pipe or table name, case-insensitive
channelName	Yes	URI	Channel name, case-insensitive
fail_on_uncommitted_rows	No	Payload	Boolean. When `true`, the server rejects the request with HTTP `409 Conflict` (`ERR_CHANNEL_HAS_UNCOMMITTED_DATA`) if the channel has uncommitted in-flight data. Otherwise, in-flight data is silently discarded and can slow co-located channels on the pipe (default: `false`).
requestId	No	Query parameter	A UUID used to track requests through the system

Response:

This operation returns a payload with no specific successful response other than the HTTP status code.

Bulk Get Channel Status¶

The Bulk Get Channel Status operation returns the status of a channel for a specific client sequencer.

POST /v2/streaming/databases/{databaseName}/schemas/{schemaName}/pipes/{pipeName}:bulk-channel-status

Request:

Attribute	Required	Component	Description
databaseName	Yes	URI	Database name, case-insensitive
schemaName	Yes	URI	Schema name, case-insensitive
pipeName	Yes	URI	Pipe name, case-insensitive
channel_names	Yes	Payload	An array of String channel names that the customer wants to get status for; the names are case-sensitive. For example, `{"channel_names":["channel1", "channel2"]}`.

Response:

{
  "channel_statuses": {
    "channel1": {
      "channel_status_code": "String",
      "last_committed_offset_token": "String",
      "database_name": "String",
      "schema_name": "String",
      "pipe_name": "String",
      "channel_name": "String",
      "rows_inserted": "int",
      "rows_parsed": "int",
      "rows_errors": "int",
      "last_error_offset_upper_bound": "String",
      "last_error_message": "String",
      "last_error_timestamp": "timestamp_utc",
      "snowflake_avg_processing_latency_ms": "int"
    },
    "channel2": {
      "comment": "same structure as channel1"
    }
    "comment": "potentially other channels"
  }
}

Note

If no requested channel is found in the service, the response payload doesn’t have an entry for that channel within the channel_statuses object.

Description of channel_statuses fields for each channel:

Field	Type	Description
channel_status_code	String	Indicates the status of the channel.
last_committed_offset_token	String	Latest committed offset token.
database_name	String	The name of the database that the channel belongs to.
schema_name	String	The name of the schema that the channel belongs to.
pipe_name	String	The name of the pipe that the channel belongs to.
channel_name	String	The name of the channel.
rows_inserted	int	A count of all rows inserted into this channel.
rows_parsed	int	A count of all rows parsed, but not necessarily inserted into this channel.
rows_errors	int	A count of all rows that experienced errors when inserted into this channel and were therefore rejected.
last_error_offset_upper_bound	String	The upper bound for an ingestion error. The error will be located at or before this committed offset token.
last_error_message	String	A human readable message corresponding to the latest error code for that channel, with sensitive customer data redacted.
last_error_timestamp	timestamp_utc	Timestamp at the time when the last error occurred.
snowflake_avg_processing_latency_ms	int	Average end-to-end processing time for this channel.

Error response structure¶

The Snowpipe Streaming REST APIs return a JSON payload for error responses. This structure provides actionable information for both automated error handling and human analysis.

The response payload has the following structure:

{
  "code": "...",
  "message": "..."
}

Response fields¶

Field	Type	Description
Code	String	A stable, programmatic error code. This value can be used for automated error handling and logging. For example, an application’s logic can check for a specific code to trigger a predefined action.
Message	String	A human-readable message that describes the error. This message is subject to change and shouldn’t be used for automated parsing.

Example¶

The following example shows an error response you might receive:

{
  "code": "STALE_CONTINUATION_TOKEN_SEQUENCER",
  "message": "Channel sequencer in the continuation token is stale. Please reopen the channel"
}

This example shows the response for an attempt to use a continuation token with a stale channel sequencer. The code provides a clear, machine-readable identifier for the error, and the message offers a helpful, descriptive text for a user.
