Vector Embeddings¶

An embedding refers to the reduction of high-dimensional data, such as unstructured text, to a representation with fewer dimensions, such as a vector. Modern deep learning techniques can create vector embeddings, which are structured numerical representations, from unstructured data such as text and images, while preserving semantic notions of similarity and dissimilarity in the geometry of the vectors they produce.

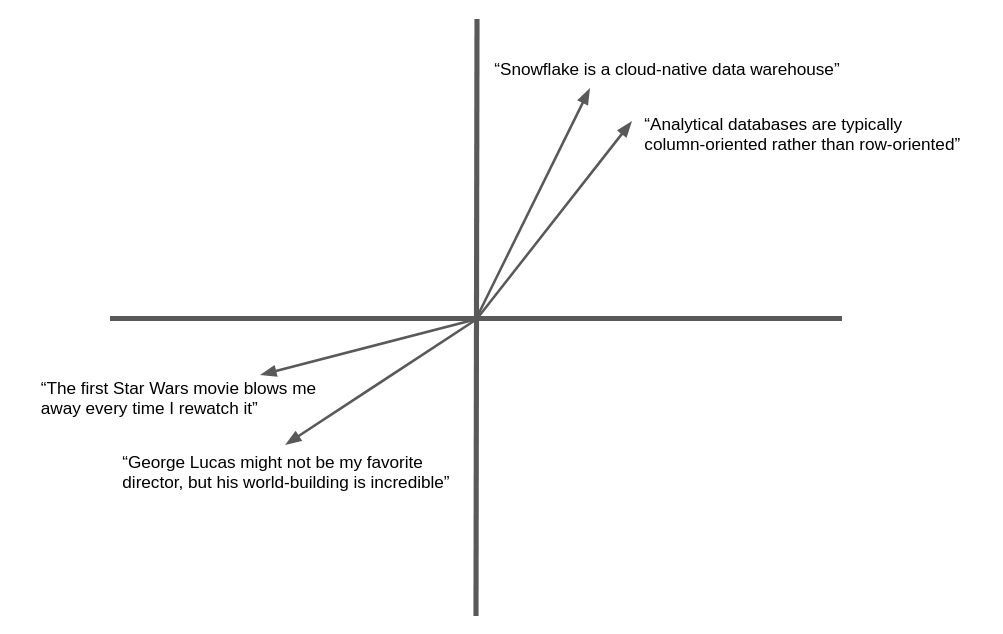

The following illustration is a simplified example of the vector embedding and geometric similarity of natural language text. In practice, neural networks produce embedding vectors with hundreds or even thousands of dimensions, not two as shown here, but the concept is the same. Semantically similar text yields vectors that “point” in the same general direction.

Many applications can benefit from the ability to find text or images similar to a target. For example, when a new support case is logged at a help desk, the support team can benefit from the ability to find similar cases that have already been resolved. The advantage of using embedding vectors in this application is that it goes beyond keyword matching to semantic similarity, so related records can be found even if they don’t contain exactly the same words.

Snowflake Cortex offers the EMBED_TEXT_768 and EMBED_TEXT_1024 functions and several Vector functions to compare them for various applications.

Text embedding models¶

Snowflake offers the following text embedding models. See below for more details.

Supported models might have different costs.

About vector similarity functions¶

The measurement of similarity between vectors is a fundamental operation in semantic comparison. Snowflake Cortex provides four vector similarity functions: VECTOR_INNER_PRODUCT, VECTOR_L1_distance, VECTOR_L2_DISTANCE, and VECTOR_COSINE_SIMILARITY. To learn more about these functions, see Vector functions.

For syntax and usage details, see the reference page for each function:

• VECTOR_INNER_PRODUCT
• VECTOR_L1_DISTANCE
• VECTOR_L2_DISTANCE
• VECTOR_COSINE_SIMILARITY

Examples¶

The following examples use the vector similarity functions.

This SQL example uses the VECTOR_INNER_PRODUCT function to determine which vectors in the table are closest to each other between columns a and b:

CREATE TABLE vectors (a VECTOR(float, 3), b VECTOR(float, 3));
INSERT INTO vectors SELECT [1.1,2.2,3]::VECTOR(FLOAT,3), [1,1,1]::VECTOR(FLOAT,3);
INSERT INTO vectors SELECT [1,2.2,3]::VECTOR(FLOAT,3), [4,6,8]::VECTOR(FLOAT,3);

-- Compute the pairwise inner product between columns a and b
SELECT VECTOR_INNER_PRODUCT(a, b) FROM vectors;

+------+
| 6.3  |
%------%
| 41.2 |
+------+

This SQL example calls the VECTOR_COSINE_SIMILARITY function to find the vector closes to [1,2,3]:

SELECT a, VECTOR_COSINE_SIMILARITY(a, [1,2,3]::VECTOR(FLOAT, 3)) AS similarity
    FROM vectors
ORDER BY similarity DESC
LIMIT 1;

+-------------------------+
| [1, 2.2, 3] | 0.9990... |
+-------------------------+

Snowflake Python Connector¶

These examples show how to use the VECTOR data type and vector similarity functions with the Python Connector.

import snowflake.connector

conn = ... # Set up connection
cur = conn.cursor()

# Create a table and insert some vectors
cur.execute("CREATE OR REPLACE TABLE vectors (a VECTOR(FLOAT, 3), b VECTOR(FLOAT, 3))")
values = [([1.1, 2.2, 3], [1, 1, 1]), ([1, 2.2, 3], [4, 6, 8])]
for row in values:
        cur.execute(f"""
            INSERT INTO vectors(a, b)
                SELECT {row[0]}::VECTOR(FLOAT,3), {row[1]}::VECTOR(FLOAT,3)
        """)

# Compute the pairwise inner product between columns a and b
cur.execute("SELECT VECTOR_INNER_PRODUCT(a, b) FROM vectors")
print(cur.fetchall())

[(6.30...,), (41.2...,)]

# Find the closest vector to [1,2,3]
cur.execute(f"""
    SELECT a, VECTOR_COSINE_SIMILARITY(a, {[1,2,3]}::VECTOR(FLOAT, 3))
        AS similarity
        FROM vectors
        ORDER BY similarity DESC
        LIMIT 1;
""")
print(cur.fetchall())

[([1.0, 2.2..., 3.0], 0.9990...)]

Snowpark Python¶

These examples show how to use the VECTOR data type and vector similarity functions with the Snowpark Python Library.

from snowflake.snowpark import Session, Row
session = ... # Set up session
from snowflake.snowpark.types import VectorType, StructType, StructField
from snowflake.snowpark.functions import col, lit, vector_l2_distance
schema = StructType([StructField("vec", VectorType(int, 3))])
data = [Row([1, 2, 3]), Row([4, 5, 6]), Row([7, 8, 9])]
df = session.create_dataframe(data, schema)
df.select(
    "vec",
    vector_l2_distance(df.vec, lit([1, 2, 2]).cast(VectorType(int, 3))).as_("dist"),
).sort("dist").limit(1).show()

----------------------
|"VEC"      |"DIST"  |
----------------------
|[1, 2, 3]  |1.0     |
----------------------

Create vector embeddings from text¶

To create a vector embedding from a piece of text, you can use the EMBED_TEXT_768 (SNOWFLAKE.CORTEX) or EMBED_TEXT_1024 (SNOWFLAKE.CORTEX) functions, depending on the output dimensions of the model. This function returns the vector embedding for a given English-language text. This vector can be used with the vector comparison functions to determine the semantic similarity of two documents.

SELECT SNOWFLAKE.CORTEX.EMBED_TEXT_768(model, text)

Example use cases¶

This section shows how to use embeddings, the vector similarity functions, and VECTOR data type to implement popular use cases such as vector similarity search and retrieval-augmented generation (RAG).

Vector similarity search¶

To implement a search for semantically similar documents, first store the embeddings for the documents to be searched. Keep the embeddings up to date when documents are added or edited.

In this example, the documents are call center issues logged by support representatives. The issue is stored in a column called issue_text in the table issues. The following SQL creates a new vector column to hold the embeddings of the issues.

ALTER TABLE issues ADD COLUMN issue_vec VECTOR(FLOAT, 768);

UPDATE issues
  SET issue_vec = SNOWFLAKE.CORTEX.EMBED_TEXT_768('snowflake-arctic-embed-m', issue_text);

To perform a search, create an embedding of the search term or target document, and then use a vector similarity function to locate documents with similar embeddings. Use ORDER BY and LIMIT clauses to select the top k matching documents, and optionally use a WHERE condition to specify a minimum similarity.

Generally, the call to the vector similarity function should appear in the SELECT clause, not in the WHERE clause. This way, the function is called only for the rows specified by the WHERE clause, which may restrict the query based on some other criteria, instead of operating over all rows in the table. To test a similarity value in the WHERE clause, define a column alias for the VECTOR_COSINE_SIMILARITY call in the SELECT clause, and use that alias in a condition in the WHERE clause.

This example finds up to five issues matching the search term from the last 90 days, assuming the cosine similarity with the search term is at least 0.7.

SELECT
  issue,
  VECTOR_COSINE_SIMILARITY(
    issue_vec,
    SNOWFLAKE.CORTEX.EMBED_TEXT_768('snowflake-arctic-embed-m', 'User could not install Facebook app on his phone')
  ) AS similarity
FROM issues
ORDER BY similarity DESC
LIMIT 5
WHERE DATEDIFF(day, CURRENT_DATE(), issue_date) < 90 AND similarity > 0.7;

Cost considerations¶

Snowflake Cortex LLM Functions, including EMBED_TEXT_768 and EMBED_TEXT_1024, incur compute cost based on the number of tokens processed.

• For the EMBED_TEXT_768 and EMBED_TEXT_1024 functions, only input tokens are counted towards the billable total.
• Vector similarity functions do not incur token-based costs.

For more information about billing of Cortex LLM Functions, see Cortex LLM Functions Cost Considerations. For general information about compute costs, see Understanding compute cost.
