Tutorial 2: Build a simple chat application with Cortex Search¶

Introduction¶

This tutorial describes how to use Cortex Search and the COMPLETE (SNOWFLAKE.CORTEX) function to setup a Retrieval-Augmented Generation (RAG) chatbot in Snowflake.

Step 1: Setup¶

CREATE DATABASE IF NOT EXISTS cortex_search_tutorial_db;

CREATE OR REPLACE WAREHOUSE cortex_search_tutorial_wh WITH
    WAREHOUSE_SIZE='X-SMALL'
    AUTO_SUSPEND = 120
    AUTO_RESUME = TRUE
    INITIALLY_SUSPENDED=TRUE;

USE WAREHOUSE cortex_search_tutorial_wh;

Step 2: Load the data into Snowflake¶

First create a stage to store the files downloaded from Kaggle. This stage will hold the books dataset.

CREATE OR REPLACE STAGE books_data_stage
    DIRECTORY = (ENABLE = TRUE)
    ENCRYPTION = (TYPE = 'SNOWFLAKE_SSE');

Now upload the dataset. You can upload the dataset in Snowsight or using SQL. To upload in Snowsight:

1. Sign in to Snowsight.

2. Select Data in the left-side navigation menu.

3. Select your database cortex_search_tutorial_db.

4. Select your schema public.

5. Select Stages and select books_data_stage.

6. On the top right, Select the + Files button.

7. Drag and drop files into the UI or select Browse to choose a file from the dialog window.

8. Select Upload to upload your file, BooksDatasetClean.csv

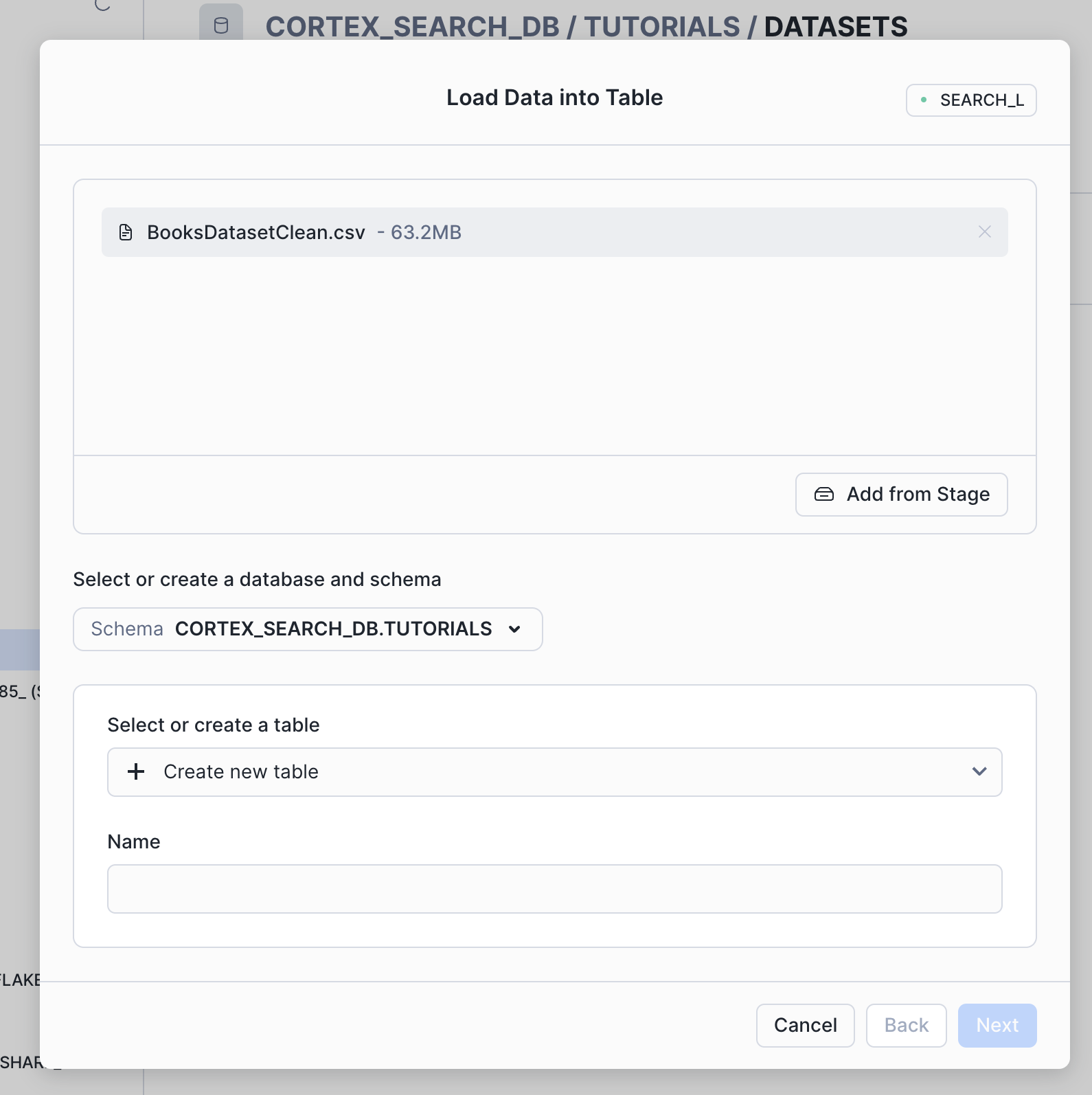

9. Select the three dots on the right of the file and select Load into table.

10. Name the table BOOKS_DATASET_RAW and select Next.



11. In the left panel of the load data dialog, choose First line contains header from the Header menu.

12. Then select Load.

Step 3: Create a Chunking UDF¶

Feeding long documents to Cortex Search will not be performant because retrieval models work best with small chunks of text. So next, create a Python UDF to chunk the text. Navigate back to a SQL editor and execute the following:

CREATE OR REPLACE FUNCTION cortex_search_tutorial_db.public.books_chunk(
    description string, title string, authors string, category string, publisher string
)
    returns table (chunk string, title string, authors string, category string, publisher string)
    language python
    runtime_version = '3.9'
    handler = 'text_chunker'
    packages = ('snowflake-snowpark-python','langchain')
    as
$$
from langchain.text_splitter import RecursiveCharacterTextSplitter
import copy
from typing import Optional

class text_chunker:

    def process(self, description: Optional[str], title: str, authors: str, category: str, publisher: str):
        if description == None:
            description = "" # handle null values

        text_splitter = RecursiveCharacterTextSplitter(
            chunk_size = 2000,
            chunk_overlap  = 300,
            length_function = len
        )
        chunks = text_splitter.split_text(description)
        for chunk in chunks:
            yield (title + "\n" + authors + "\n" + chunk, title, authors, category, publisher) # always chunk with title
$$;

Step 4: Build the Chunks Table¶

Create a table to store the chunks of text extracted from the transcripts. Include the title and speaker in the chunk to provide context:

CREATE TABLE cortex_search_tutorial_db.public.book_description_chunks AS (
    SELECT
        books.*,
        t.CHUNK as CHUNK
    FROM cortex_search_tutorial_db.public.books_dataset_raw books,
        TABLE(cortex_search_tutorial_db.public.books_chunk(books.description, books.title, books.authors, books.category, books.publisher)) t
);

Verify the table contents:

SELECT chunk, * FROM book_description_chunks LIMIT 10;

Step 5: Create a Cortex Search Service¶

Create a Cortex Search Service on the table to allow you to search through the chunks in the book_description_chunks:

CREATE CORTEX SEARCH SERVICE cortex_search_tutorial_db.public.books_dataset_service
    ON CHUNK
    WAREHOUSE = cortex_search_tutorial_wh
    TARGET_LAG = '1 hour'
    AS (
        SELECT *
        FROM cortex_search_tutorial_db.public.book_description_chunks
    );

Step 6: Create a Streamlit app¶

You can query the service with Python SDK (using the snowflake Python package). This tutorial demonstrates using the Python SDK in a Streamlit in Snowflake application.

First, ensure your global Snowsight UI role is the same as the role used to create the service in the service creation step.

1. Sign in to Snowsight.

2. Select Projects » Streamlit in the left-side navigation menu.

3. Select + Streamlit App.

4. Important: Select the cortex_search_tutorial_db database and public schema for the app location.

5. In the left pane of the Streamlit in Snowflake editor, select Packages and add snowflake (version >= 0.8.0) to install the package in your application.

6. Replace the example application code with the following Streamlit app:

   import streamlit as st
   from snowflake.core import Root # requires snowflake>=0.8.0
   from snowflake.snowpark.context import get_active_session

   MODELS = [
       "mistral-large",
       "snowflake-arctic",
       "llama3-70b",
       "llama3-8b",
   ]

   def init_messages():
       """
       Initialize the session state for chat messages. If the session state indicates that the
       conversation should be cleared or if the "messages" key is not in the session state,
       initialize it as an empty list.
       """
       if st.session_state.clear_conversation or "messages" not in st.session_state:
           st.session_state.messages = []

   def init_service_metadata():
       """
       Initialize the session state for cortex search service metadata. Query the available
       cortex search services from the Snowflake session and store their names and search
       columns in the session state.
       """
       if "service_metadata" not in st.session_state:
           services = session.sql("SHOW CORTEX SEARCH SERVICES;").collect()
           service_metadata = []
           if services:
               for s in services:
                   svc_name = s["name"]
                   svc_search_col = session.sql(
                       f"DESC CORTEX SEARCH SERVICE {svc_name};"
                   ).collect()[0]["search_column"]
                   service_metadata.append(
                       {"name": svc_name, "search_column": svc_search_col}
                   )

           st.session_state.service_metadata = service_metadata

   def init_config_options():
       """
       Initialize the configuration options in the Streamlit sidebar. Allow the user to select
       a cortex search service, clear the conversation, toggle debug mode, and toggle the use of
       chat history. Also provide advanced options to select a model, the number of context chunks,
       and the number of chat messages to use in the chat history.
       """
       st.sidebar.selectbox(
           "Select cortex search service:",
           [s["name"] for s in st.session_state.service_metadata],
           key="selected_cortex_search_service",
       )

       st.sidebar.button("Clear conversation", key="clear_conversation")
       st.sidebar.toggle("Debug", key="debug", value=False)
       st.sidebar.toggle("Use chat history", key="use_chat_history", value=True)

       with st.sidebar.expander("Advanced options"):
           st.selectbox("Select model:", MODELS, key="model_name")
           st.number_input(
               "Select number of context chunks",
               value=5,
               key="num_retrieved_chunks",
               min_value=1,
               max_value=10,
           )
           st.number_input(
               "Select number of messages to use in chat history",
               value=5,
               key="num_chat_messages",
               min_value=1,
               max_value=10,
           )

       st.sidebar.expander("Session State").write(st.session_state)

   def query_cortex_search_service(query):
       """
       Query the selected cortex search service with the given query and retrieve context documents.
       Display the retrieved context documents in the sidebar if debug mode is enabled. Return the
       context documents as a string.

       Args:
           query (str): The query to search the cortex search service with.

       Returns:
           str: The concatenated string of context documents.
       """
       db, schema = session.get_current_database(), session.get_current_schema()

       cortex_search_service = (
           root.databases[db]
           .schemas[schema]
           .cortex_search_services[st.session_state.selected_cortex_search_service]
       )

       context_documents = cortex_search_service.search(
           query, columns=[], limit=st.session_state.num_retrieved_chunks
       )
       results = context_documents.results

       service_metadata = st.session_state.service_metadata
       search_col = [s["search_column"] for s in service_metadata
                       if s["name"] == st.session_state.selected_cortex_search_service][0]

       context_str = ""
       for i, r in enumerate(results):
           context_str += f"Context document {i+1}: {r[search_col]} \n" + "\n"

       if st.session_state.debug:
           st.sidebar.text_area("Context documents", context_str, height=500)

       return context_str

   def get_chat_history():
       """
       Retrieve the chat history from the session state limited to the number of messages specified
       by the user in the sidebar options.

       Returns:
           list: The list of chat messages from the session state.
       """
       start_index = max(
           0, len(st.session_state.messages) - st.session_state.num_chat_messages
       )
       return st.session_state.messages[start_index : len(st.session_state.messages) - 1]

   def complete(model, prompt):
       """
       Generate a completion for the given prompt using the specified model.

       Args:
           model (str): The name of the model to use for completion.
           prompt (str): The prompt to generate a completion for.

       Returns:
           str: The generated completion.
       """
       return session.sql("SELECT snowflake.cortex.complete(?,?)", (model, prompt)).collect()[0][0]

   def make_chat_history_summary(chat_history, question):
       """
       Generate a summary of the chat history combined with the current question to extend the query
       context. Use the language model to generate this summary.

       Args:
           chat_history (str): The chat history to include in the summary.
           question (str): The current user question to extend with the chat history.

       Returns:
           str: The generated summary of the chat history and question.
       """
       prompt = f"""
           [INST]
           Based on the chat history below and the question, generate a query that extend the question
           with the chat history provided. The query should be in natural language.
           Answer with only the query. Do not add any explanation.

           <chat_history>
           {chat_history}
           </chat_history>
           <question>
           {question}
           </question>
           [/INST]
       """

       summary = complete(st.session_state.model_name, prompt)

       if st.session_state.debug:
           st.sidebar.text_area(
               "Chat history summary", summary.replace("$", "\$"), height=150
           )

       return summary

   def create_prompt(user_question):
       """
       Create a prompt for the language model by combining the user question with context retrieved
       from the cortex search service and chat history (if enabled). Format the prompt according to
       the expected input format of the model.

       Args:
           user_question (str): The user's question to generate a prompt for.

       Returns:
           str: The generated prompt for the language model.
       """
       if st.session_state.use_chat_history:
           chat_history = get_chat_history()
           if chat_history != []:
               question_summary = make_chat_history_summary(chat_history, user_question)
               prompt_context = query_cortex_search_service(question_summary)
           else:
               prompt_context = query_cortex_search_service(user_question)
       else:
           prompt_context = query_cortex_search_service(user_question)
           chat_history = ""

       prompt = f"""
               [INST]
               You are a helpful AI chat assistant with RAG capabilities. When a user asks you a question,
               you will also be given context provided between <context> and </context> tags. Use that context
               with the user's chat history provided in the between <chat_history> and </chat_history> tags
               to provide a summary that addresses the user's question. Ensure the answer is coherent, concise,
               and directly relevant to the user's question.

               If the user asks a generic question which cannot be answered with the given context or chat_history,
               just say "I don't know the answer to that question.

               Don't saying things like "according to the provided context".

               <chat_history>
               {chat_history}
               </chat_history>
               <context>
               {prompt_context}
               </context>
               <question>
               {user_question}
               </question>
               [/INST]
               Answer:
           """
       return prompt

   def main():
       st.title(f":speech_balloon: Chatbot with Snowflake Cortex")

       init_service_metadata()
       init_config_options()
       init_messages()

       icons = {"assistant": "❄️", "user": "👤"}

       # Display chat messages from history on app rerun
       for message in st.session_state.messages:
           with st.chat_message(message["role"], avatar=icons[message["role"]]):
               st.markdown(message["content"])

       disable_chat = (
           "service_metadata" not in st.session_state
           or len(st.session_state.service_metadata) == 0
       )
       if question := st.chat_input("Ask a question...", disabled=disable_chat):
           # Add user message to chat history
           st.session_state.messages.append({"role": "user", "content": question})
           # Display user message in chat message container
           with st.chat_message("user", avatar=icons["user"]):
               st.markdown(question.replace("$", "\$"))

           # Display assistant response in chat message container
           with st.chat_message("assistant", avatar=icons["assistant"]):
               message_placeholder = st.empty()
               question = question.replace("'", "")
               with st.spinner("Thinking..."):
                   generated_response = complete(
                       st.session_state.model_name, create_prompt(question)
                   )
                   message_placeholder.markdown(generated_response)

           st.session_state.messages.append(
               {"role": "assistant", "content": generated_response}
           )

   if __name__ == "__main__":
       session = get_active_session()
       root = Root(session)
       main()


   Copy

Step 7: Try out the app¶

Enter a query in the text box to try out your new app. Some sample queries you can try are:

• I like Harry Potter. Can you recommend more books I will like?

• Can you recommend me books on Greek Mythology?

Step 7: Clean up¶

DROP DATABASE IF EXISTS cortex_search_tutorial_db;
DROP WAREHOUSE IF EXISTS cortex_search_tutorial_wh;

Next steps¶

Congratulations! You have successfully built a simple search app on text data in Snowflake. You can move on to Tutorial 3 to see how to build an AI chatbot with Cortex Search from a set of PDF files.
