Analyzing query workloads with Performance Explorer¶

You can use Performance Explorer in Snowsight to monitor interactive metrics for SQL workloads. The metrics show the overall health of your Snowflake environment, query activity, changes to warehouses, and changes to tables.

Benefits of Performance Explorer¶

Performance Explorer can help you answer the following key questions about Snowflake activity:

Overall activity: Are queries generally succeeding, and can Snowflake users get their work done?
Change over time: If query activity or resources look different from what I expected, what has changed and when did the changes occur?
Hot spots: When I look for opportunities to take action, where should I focus my attention?

Common use cases for Performance Explorer¶

Performance Explorer can help with the following use cases:

Investigating problem reports about queries or workloads: If a Snowflake workload has started to behave differently, determine what else might have changed recently, such as the resources that the workload depends on or neighboring workload activity.
Proactively identifying hotspots: If a warehouse or table shows persistent errors or saturation, identify and address the hotspot before it affects critical workloads.
Identifying optimization opportunities: Find warehouses and tables that might be mismatched to the query activity they support, and adjust workloads and resources to make them compatible.

Required privileges¶

A user granted the ACCOUNTADMIN role can access Performance Explorer.

Users that aren’t granted the ACCOUNTADMIN role must be granted the following roles to access Performance Explorer:

APP_USAGE_VIEWER application role
USAGE_VIEWER database role

For example, if you want user joe to be able to access Performance Explorer, run the following commands:

USE ROLE ACCOUNTADMIN;

CREATE ROLE pe_viewer_role;
GRANT APPLICATION ROLE SNOWFLAKE.APP_USAGE_VIEWER TO ROLE pe_viewer_role;
GRANT DATABASE ROLE SNOWFLAKE.USAGE_VIEWER TO ROLE pe_viewer_role;
GRANT ROLE pe_viewer_role TO USER joe;

Copy

Open Performance Explorer¶

To open Performance Explorer, complete the following steps:

Sign in to Snowsight.
In the navigation menu, select Monitoring » Performance Explorer.

Performance Explorer contains charts that show metrics related to your workloads and the general health of your Snowflake environment.

Understanding the Performance Explorer dashboard¶

You can monitor interactive metrics for SQL workloads by using charts on the Performance Explorer dashboard, and you can apply filters to show metrics about only the query activity and resources that you’re interested in.

Performance Explorer filters¶

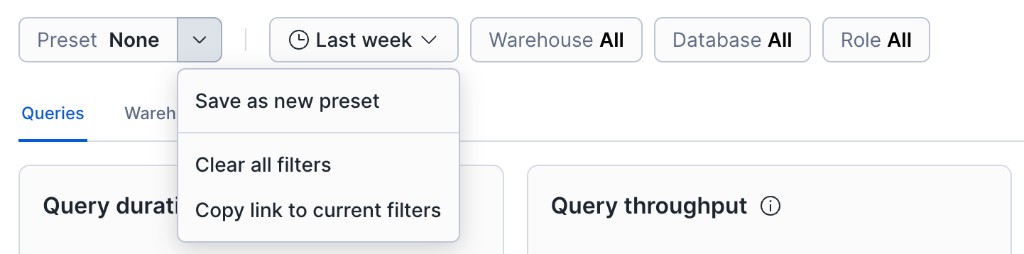

At the top of the Performance Explorer dashboard, you can apply the following filters:

Period - Select a time period, such as the last week, the last two weeks, or a custom range. The dashboard shows metrics for the specified period.

Performance Explorer displays metrics for one week by default. It supports a period of up to one month, going back from the current date.

Several Performance Explorer charts show the percentage of change compared to the previous period. The range of the previous period corresponds with the current period range. For example, if the current period is two weeks, then the previous period is the two weeks before the current period started.
Warehouse - Select a warehouse to view metrics only for query activity that ran using that warehouse. To limit the warehouses in the list, use the search field. To clear the filter, select X.
Database - Select a database to view metrics only for query activity that accessed that database. To limit the databases in the list, use the search field. To clear the filter, select X.
Role - Select a role to view metrics only for query activity initiated by that role. To limit the roles in the list, use the search field. To clear the filter, select X.

Performance Explorer charts¶

Performance Explorer displays metrics in different types of charts. It is important to understand the components in each type of chart and how to interpret them.

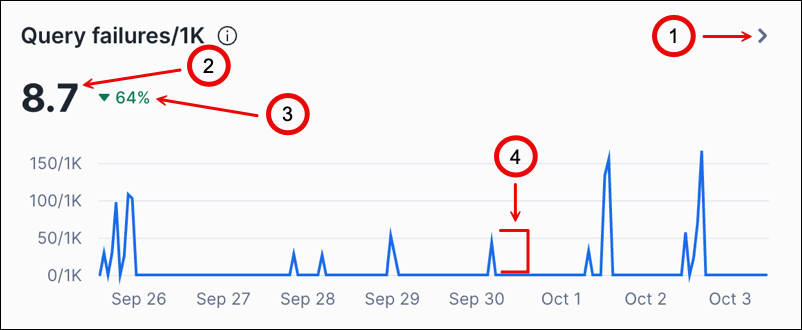

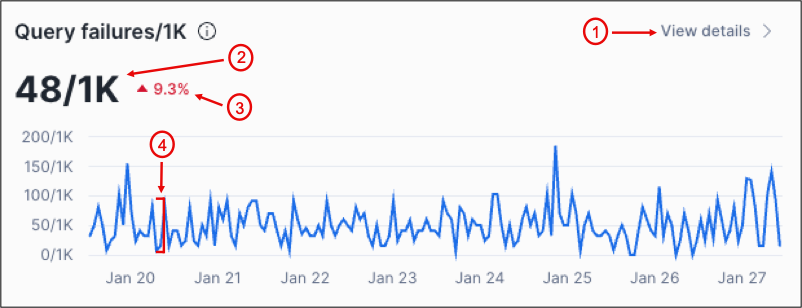

The Query health and Query activity sections have line charts that are similar to the following image:

The following table describes the callouts in the image:

Callout	Description
1	Select > to open the side panel.
2	Shows the average or median in the period.
3	Shows the percentage increased or decreased compared to the previous period.
4	Represents the value for one hour. The values are shown for an amount of time at the start of the interval. For example, if the interval is one hour, the value shown at 9 AM is for the interval from 9 AM to 10 AM.

Some charts include a large average or median value and the percentage of change for the period. When there is more than one line, there is a key to the lines above the chart.

Some charts have an information icon next to the title. Hover over the icon for information about the metrics in the chart.

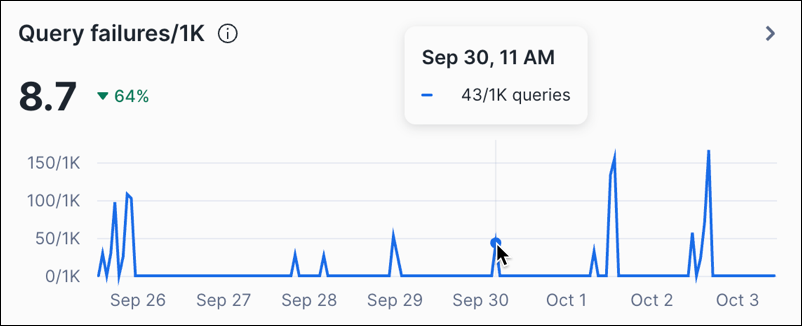

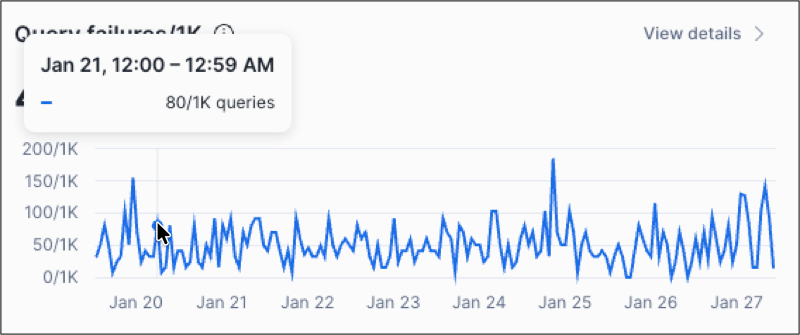

You can hover over a point in the line chart to see the value for a specific hour:

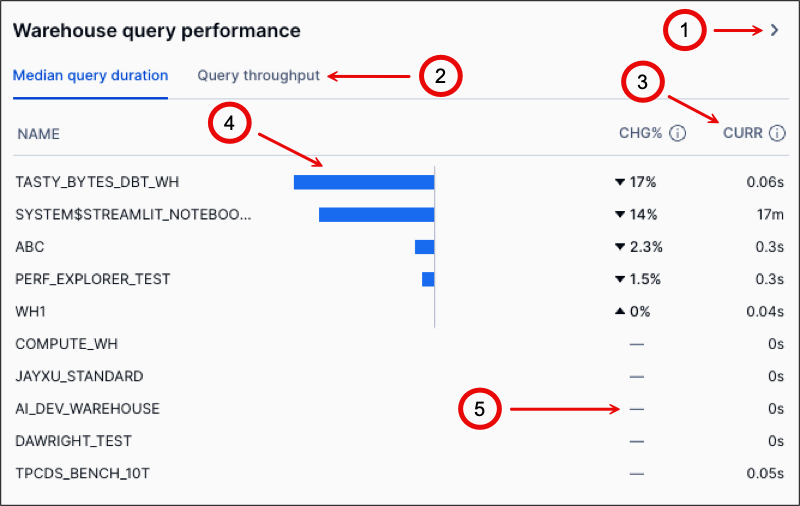

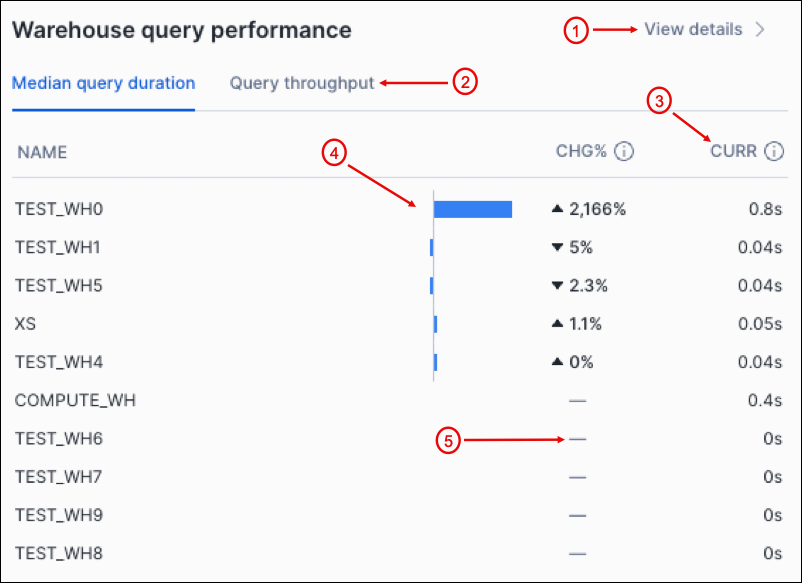

The Top warehouses and Top tables sections have bar charts that are similar to the following image:

The following table describes the callouts in the image:

Callout	Description
1	Select > to open the side panel.
2	Select a tab to show the metrics on the tab.
3	Shows the value of this metric for the current period.
4	Shows the percentage increased or decreased compared to the previous period.
5	Indicates that there is no data from the previous period for comparison.

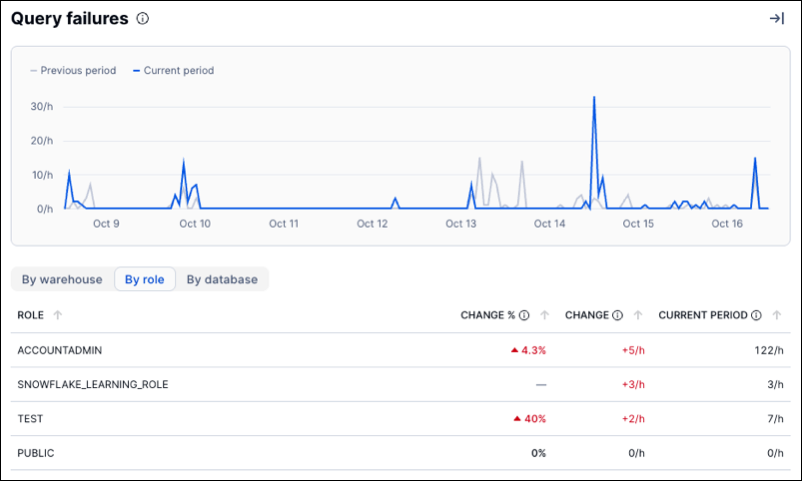

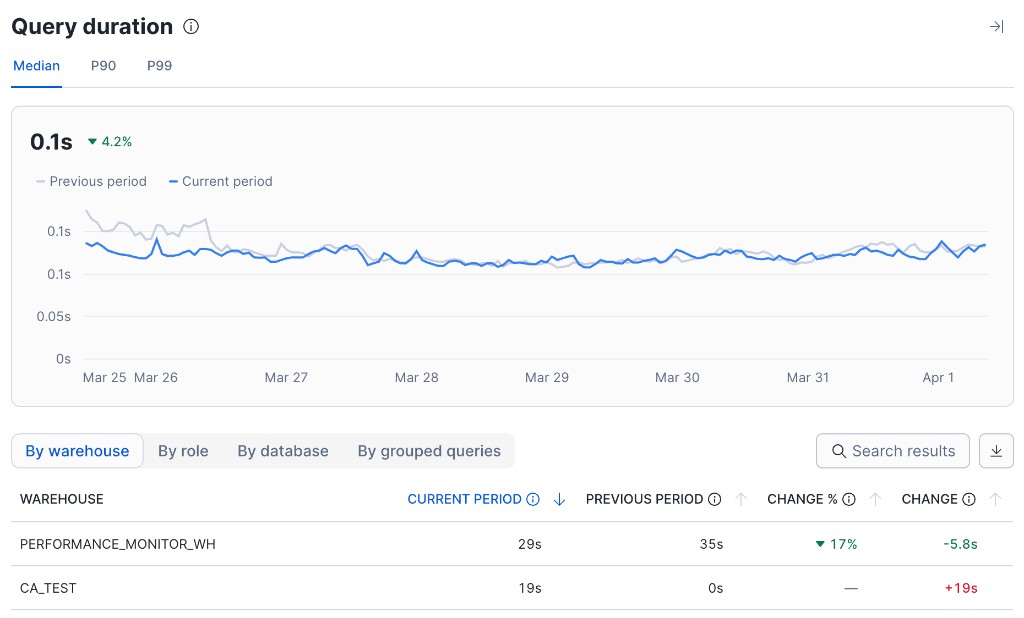

On both line charts and bar charts, select > to open a side panel that displays more detailed information about the metrics on the chart. The detailed information varies based on the metrics shown in the chart. Most side panels present sortable tables that you can use to view metrics for specific warehouses, roles, and databases in the period. The following image shows an example of a side panel:

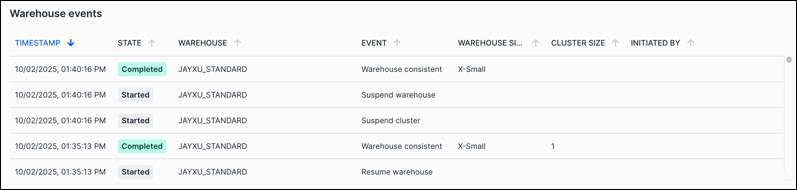

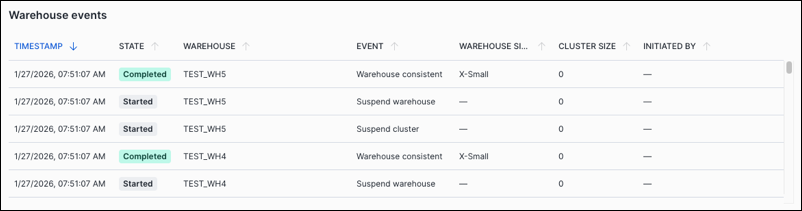

The Top warehouses and Top tables sections also have events charts that are similar to the following image:

An events chart shows a sortable table of events for the type of object. You can examine the data for unexpected events. For more information about warehouse events, see WAREHOUSE_EVENTS_HISTORY view. For more information about table events, see TABLES view.

Monitoring query health¶

This section of Performance Explorer includes metrics about the overall health of your Snowflake environment. You can monitor these metrics to ensure that your users can run queries successfully and complete required tasks.

This section includes the following metrics:

Metric	Unit	Description	Notes	More information
Query failures/1K	Failures per 1000	The number of queries that failed for every 1,000 queries that ran, including the following metrics: The large number above the line graph is the average number of failures for every 1,000 queries in the period. The percentage value is the percentage of change in the rate of failures since the last period. The line chart shows the number of failures for every 1,000 queries for each hour in the period.	This metric should be low or zero. If queries are failing, review the query history and errors, and then modify your queries to resolve the issues.	Monitor query activity with Query History . . QUERY_HISTORY view
Query retries/1K	Retries per 1000	The number of queries that were retried for every 1,000 queries that ran, including the following metrics: The large number above the line graph is the average number of retries for every 1,000 queries in the period. The percentage value is the percentage of change in the rate of retries since the last period. The line chart shows the number of retries for every 1,000 queries for each hour in the period.	This metric should be low or zero. If queries are retrying, review the causes, and then take actions to prevent query retries. For example, if a query is retried because of an out-of-memory error, modifying warehouse settings might resolve the issue.	QUERY_HISTORY view
Query overload %	Percent	The percentage of total run time that queries waited in a queue for warehouse resources, including the following metrics: The large number above the line graph is the median percentage of time that queries waited in a queue for warehouse resources in the period. The percentage value is the percentage of change in the number of queries that waited since the last period. The line chart shows the percentage of time that queries waited in a queue for warehouse resources for each hour in the period.	This metric should be low or zero. If queries are waiting before running, warehouse resources might be exhausted, causing queries to be queued until resources become available.	Reducing queues
Query blocked %	Percent	The percentage of total run time that queries spent blocked waiting for a transaction lock on a resource, including the following metrics: The large number above the line graph is the median percentage of spent blocked waiting for a lock in the period. The percentage value is the percentage of change in the amount of time that queries spent blocked since the last period. The line chart shows the percentage of time queries spent blocked waiting for a lock for each hour in the period.	This metric should be low or zero. If queries were blocked, review the query history and errors, and then modify your queries to resolve the issues.	Resource locking . . Best practices for transactions . . LOCK_WAIT_HISTORY view . . Monitor query activity with Query History . . QUERY_HISTORY view

Monitoring query activities¶

This section of Performance Explorer includes metrics about the query activity for a period. You can monitor these metrics to track any large-scale changes in query activity that might affect resource usage or the ability of users to run queries successfully.

This section includes the following metrics:

Metric	Unit	Description	Notes	More information
Query duration	Seconds	The amount of time it took for queries to complete for each hour of the period. The line chart shows the median amount of time for all queries, the amount of time for queries in the ninetieth percentile, and the amount of time for queries in the ninety-ninth percentile.	This metric varies widely depending on your data and the types of queries you are running. Queries with durations that change over time might be candidates for investigation and optimization.	Exploring execution times . . Optimizing query performance
Query throughput	Queries	The number of queries that ran each hour.	This metric can reveal changes in query activity, which might indicate new trends or changes in your workloads.	Optimizing warehouses for performance
Query wait time	Seconds	The amount of time that queries waited for warehouse resources or because of a lock on a resource. For information about the states (Overload, Provisioning, Repair, and Blocked), see QUERY_HISTORY view.	This metric should be low or zero. If queries are waiting before running, warehouse resources might be exhausted, causing queries to be queued until resources become available.	Reducing queues . . Resource locking
Query failures	Failures	The number of queries that failed for each hour in the period.	This metric should be low or zero. If queries are failing, review the query history and errors, and then modify your queries to resolve the issues.	Monitor query activity with Query History . . QUERY_HISTORY view

Monitoring top warehouses¶

This section of Performance Explorer includes metrics about the warehouses in your Snowflake environment that experienced the most changes in the period. You can monitor these metrics to ensure that your warehouses are functioning as expected to support query activity. The metrics can also show whether any warehouses are associated with trends in query activity that are unusual when compared to other warehouses. You can also determine whether the composition of the workloads that warehouses run have changed.

All metrics in this section show the metric value and the percentage of change since the last period. The percentage of change can be positive or negative, with positive change represented by an up arrow and negative change represented by a down arrow. For each metric, Performance Explorer shows the 10 warehouses with the most changes. To view metrics for more warehouses, select > on a chart to open the side panel. If this metric has no value from the last period for a warehouse, — is shown instead of the percentage of change. There might be no value because the warehouse is new, or because the event being measured is infrequent.

This section includes the following metrics:

Metric	Tab	Unit	Description	Notes	More information
Warehouses with errors	Query failures/1K	Failures per 1000	For each warehouse, the number of queries that failed for every 1,000 queries that ran.	This metric should be low or zero. If queries are failing, review the query history and errors, and then modify your queries to resolve the issues.	Monitor query activity with Query History . . QUERY_HISTORY view
	Query OOM errors/1K	Errors per 1000	For each warehouse, the number of queries that returned “out of memory” errors for every 1,000 queries that ran.	This metric should be low or zero. If queries are failing with “out of memory” errors, review the query history to determine which queries are failing for the warehouses, and then modify the warehouses that run the queries to avoid the errors.	Monitor query activity with Query History . . QUERY_HISTORY view . . Queries too large to fit in memory
	Query retries/1K	Retries per 1000	For each warehouse, the number of queries that were retried for every 1,000 queries that ran.	This metric should be low or zero. If queries are retrying because warehouses are running out of memory, review the query history to determine which queries are retrying for the warehouses, and then modify the warehouses that run the queries to avoid the errors.	Monitor query activity with Query History . . QUERY_HISTORY view . . Optimizing warehouses for performance
Warehouses with spillage	% queries with bytes spilled	Percent	For each warehouse, the percentage of queries that spilled to local disk or remote cloud storage when they ran.	This metric should be low or zero. If queries are spilling to disk because warehouses are running out of memory, review the query history to determine which queries are spilling for the warehouses, and then modify the warehouses that run the queries to avoid the errors.	Monitor query activity with Query History . . QUERY_HISTORY view . . Queries too large to fit in memory
	% bytes spilled of total	Percent	For each warehouse, the percentage of bytes that spilled to local disk or remote cloud storage when they ran compared with the number of bytes read.	This metric should be low or zero. If queries are spilling to disk because warehouses are running out of memory, review the query history to determine which queries are spilling for the warehouses, and then modify the warehouses that run the queries to avoid the errors.	Monitor query activity with Query History . . QUERY_HISTORY view . . Queries too large to fit in memory
Query wait time %	Overload %	Percent	For each warehouse, the proportion of total run time that queries waited because the warehouse was overloaded by the query workload.	This metric should be low or zero. If queries are waiting before running, warehouse resources might be exhausted, causing the warehouse to queue queries until resources become available.	Reducing queues
	Provisioning %	Percent	For each warehouse, the average proportion of total run time that queries waited for warehouse compute resources to provision, due to warehouse creation, resume, or resize.	This metric should be low or zero. If queries are waiting before running, warehouse resources might be exhausted, causing it to queue queries until resources become available.	Reducing queues
Warehouse query performance	Median query duration	Seconds	For each warehouse, the median amount of time for queries to run.	This metric varies widely depending on your data and the types of queries you are running. If the median query duration shows unusual changes, the workload that this warehouse supports might have changed, or the warehouse configuration might have changed.	Exploring execution times . . Optimizing query performance
	Query throughput	Queries	For each warehouse, the number of queries processed.	This metric can reveal changes in query activity, which might require modifications to the warehouses that run the queries.	Optimizing warehouses for performance
Warehouse events	–	None	A sortable table of warehouse events.	This metric shows which warehouses changed in the period. Examine the data for unexpected events.	WAREHOUSE_EVENTS_HISTORY view

Monitoring top tables¶

This section of Performance Explorer includes metrics about the tables in your Snowflake environment that experienced the most changes in the period. You can monitor these metrics to ensure that your tables can support query activity and return data as expected. The metrics can also show whether any tables are associated with trends in query activity that are unusual when compared to other tables. You can also determine whether any tables have changed recently and how they have changed.

All metrics in this section show the metric value and the percentage of change since the last period. The percentage of change can be positive or negative, with positive change represented by an up arrow and negative change represented by a down arrow. For each metric, Performance Explorer shows the 10 tables with the most changes. To view metrics for more tables, select > on a chart to open the side panel. If this metric has no value from the last period for a table, — is shown instead of the percentage of change. There might be no value because the table is new or because the event being measured is infrequent.

This section includes the following metrics:

Metric	Tab	Unit	Description	Notes	More information
Table query failures/1K	–	Failures per 1000	For each table, the number of queries that failed for every 1,000 queries that ran.	This metric should be low or zero. If queries are failing, review the query history and errors, and then modify your queries to resolve the issues.	Monitor query activity with Query History . . QUERY_HISTORY view
Table queries blocked/1K	–	Blocked per 1000	For each table, the number of queries that were blocked for every 1,000 queries that ran.	This metric should be low or zero. If queries were blocked, review the query history and errors, and then modify your queries to resolve the issues.	Resource locking . . Best practices for transactions . . LOCK_WAIT_HISTORY view . . Monitor query activity with Query History . . QUERY_HISTORY view
Table read performance	Median read query duration	Seconds	For each table, the median amount of time for queries to run.	This metric varies widely depending on your data and the types of queries you are running. Queries with durations that change over time might be candidates for investigation and optimization.	Exploring execution times . . Optimizing query performance
	Read query throughput	Queries	For each table, the number of queries processed.	This metric can reveal changes in query activity for tables. If there is an increase in the number of queries for a table, you might want to modify the table to optimize query performance. For example, you might enable search optimization on the table.	Table Design Considerations . . Optimizing query performance
Table write performance	Median write query duration	Seconds	For each table, the median amount of time for Data Manipulation Language (DML) operations to run.	This metric varies widely depending on your data and the types of DML operations you are running. DML operations with durations that change over time might be candidates for investigation and optimization.	Exploring execution times . . Optimizing query performance
	Write query throughput	Queries	For each table, the number of DML operations processed. If there is an increase in the number of DML operations for a table, you might want to modify the table to optimize performance.	This metric can reveal changes in the number of DML operations.	Table Design Considerations
